Product Design

MF1E

Engine Design

Year2023
MF1E

About

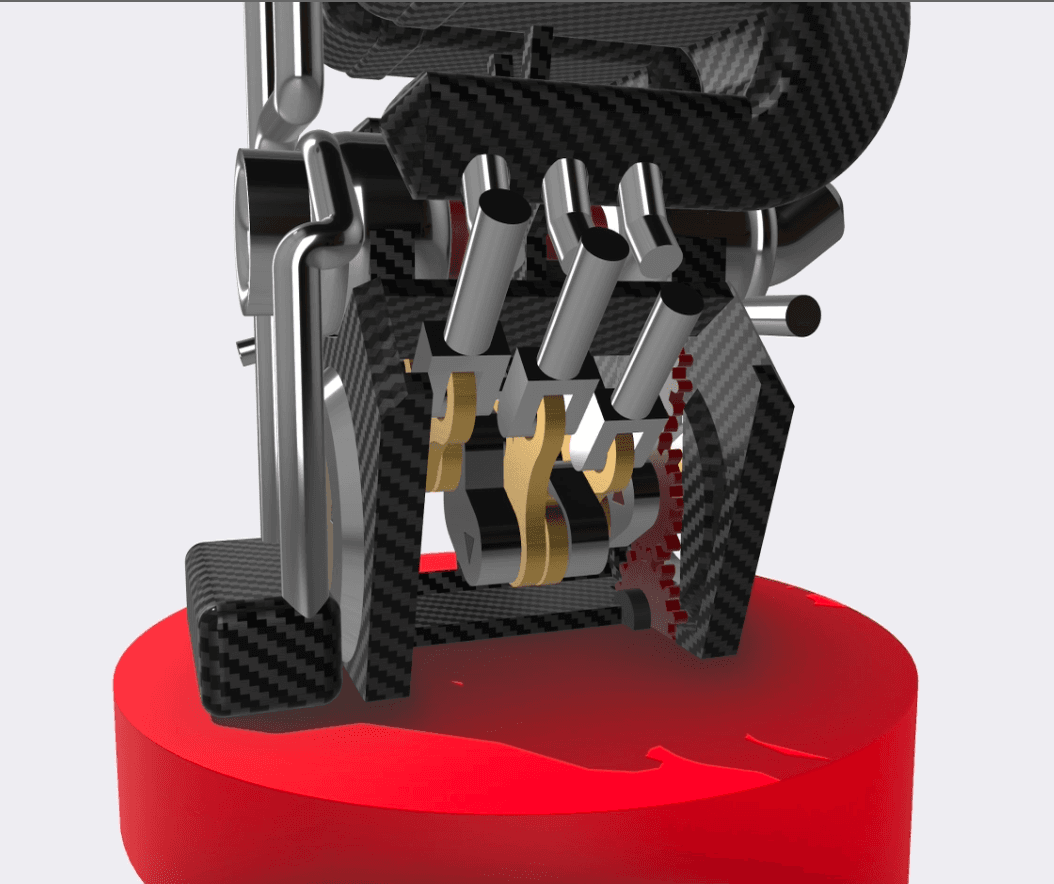

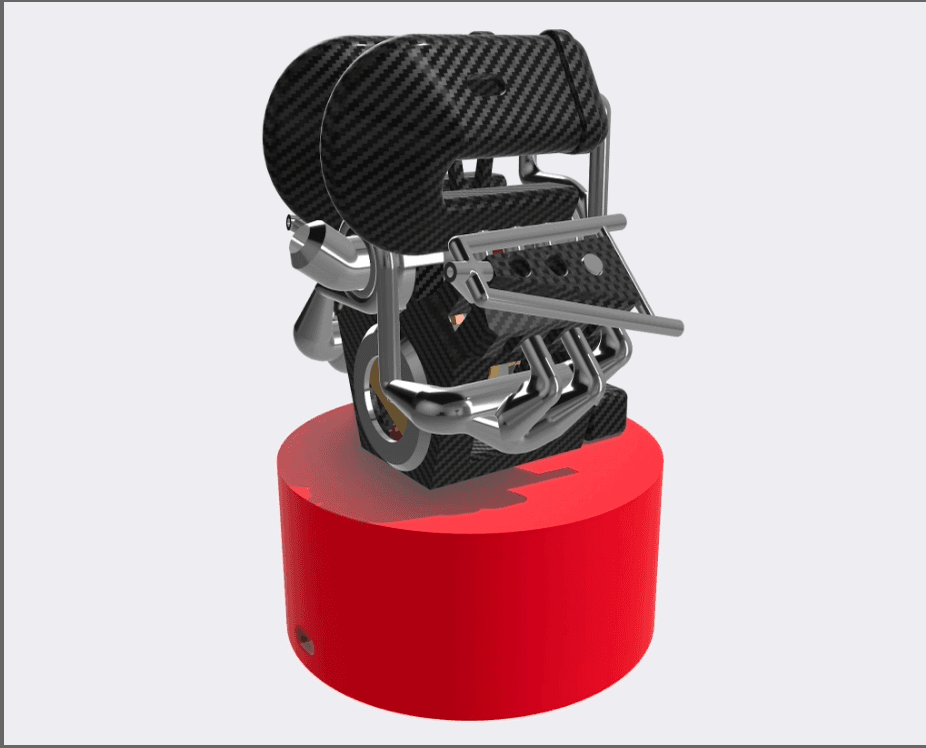

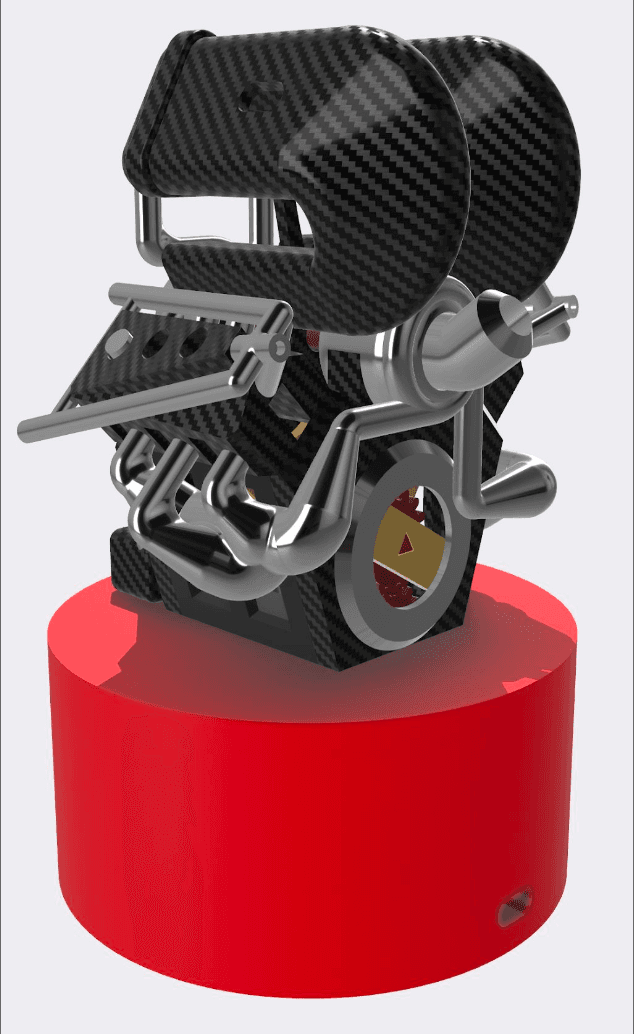

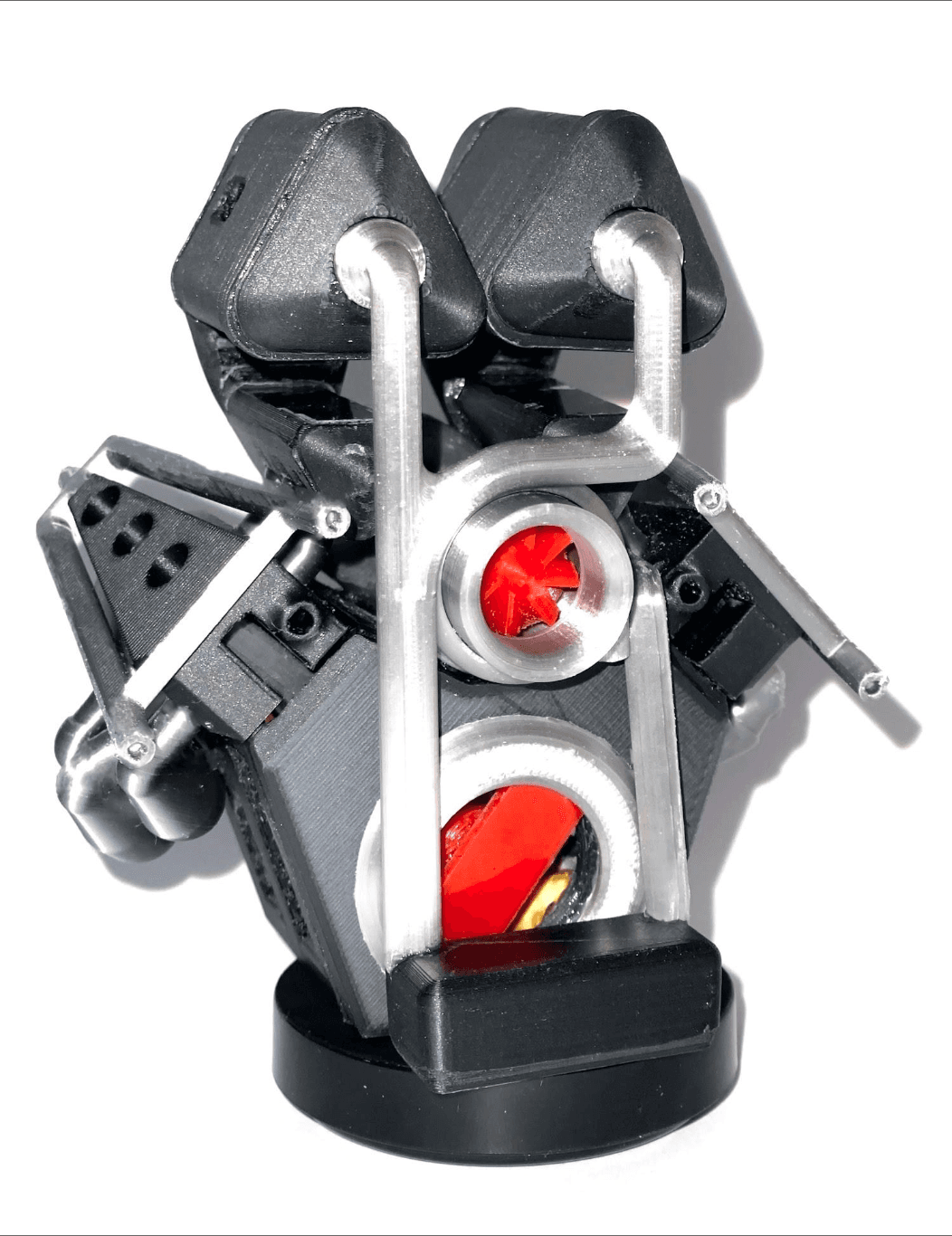

I have designed the model engine to clearly represent the split turbo setup with place for the MGU-H, the unique intakes as well as the water to air intercooler, as in my opinion these are the key parts. The motor is very small, approximately 10x10x10 mm, due to this I have chosen to use gears to make it resemble more like clockwork and to indicate intricacy. The base will hold the arduino, motor and screen to show the time. The total setup is smaller than a mug.

Gallery
